Displaying an Image

• Use JOptionPane to display message:


  JOptionPane.showMessageDialog(null, "Hello, World!");


• Note icon to the left

Displaying an Image

• Can specify arbitrary image file


  JOptionPane.showMessageDialog(
   null,
   "Hello, World!",
   "Message",
   JOptionPane.INFORMATION_MESSAGE,
   new ImageIcon("globe.gif"));


Displaying an Image

• What if we don't want to generate an image file?
• Fortunately, can use any class that implements Icon interface type

• ImageIcon is one such class
• Easy to supply your own class

The Icon Interface Type

public interface Icon
{
 int getIconWidth();
 int getIconHeight();
 void paintIcon(Component c, Graphics g, int x, int y);
}

Interface Types

Polymorphism

• public static void showMessageDialog(...Icon anIcon)
• showMessageDialog shows

  • icon
  • message
  • OK button
• showMessageDialog must compute size of dialog
• width = icon width + message size + blank size
• How do we know the icon width?


  int width = anIcon.getIconWidth();


Polymorphism

• showMessageDialog doesn't know which icon is passed

  • ImageIcon?
  • MarsIcon?
  • . . .?

• The actual type of anIcon is not Icon
• There are no objects of type Icon
• anIcon belongs to a class that implements Icon
• That class defines a getIconWidth method

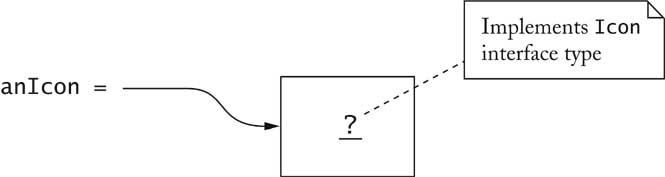

A Variable of Interface Type

Polymorphism

• Which getIconWidth method is called?
• Could be

  • MarsIcon.getIconWidth
  • ImageIcon.getIconWidth
  • . . .

• Depends on object to which anIcon reference points, e.g.


  showMessageDialog(..., new MarsIcon(50))


• Polymorphism: Select different methods according to actual object type

Benefits of Polymorphism

• Loose coupling
  • showMessageDialog decoupled from ImageIcon
  • Doesn't need to know about image processing

• Extensibility
  • Client can supply new icon types

The Comparable Interface Type

• Collections  has static sort method:


  ArrayList<E> a = . . .
  Collections.sort(a);


• Objects in list must implement the Comparable interface type


  public interface Comparable<T>
  {
   int compareTo(T other);
  }


• Interface is parameterized (like ArrayList)
• Type parameter is type of other


The Comparable Interface Type

The Comparator interface type

• How can we sort countries by name?
• Can't implement Comparable twice!
• Comparator interface type gives added flexibility


  public interface Comparator<T>
  {
     int compare(T obj1, T obj2);
  }


• Pass comparator object to sort:


  Collections.sort(list, comp);


The Comparator interface type

Anonymous Classes

Java Swing and JFrames

• JFrame window has decorations
  • title bar
  • close box
  • provided by windowing system

• JFrame frame = new JFrame();
  frame.pack();
  frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
  frame.setVisible(true);


Adding Components

User Interface Actions

• Previous program's buttons don't have any effect
• Add listener object(s) to button
• Belong to class implementing ActionListener interface type

  public interface ActionListener
  {
     int actionPerformed(ActionEvent event);
  }


• Listeners are notified when button is clicked

User Interface Actions

• Add action code into  actionPerformed method

• Gloss over routine code


helloButton.addActionListener(new
   ActionListener()
   {
      public void actionPerformed(ActionEvent event)
      {
          textField.setText("Hello, World");
     }
   });

• When button is clicked, text field is set


Accessing Variables from Enclosing Scope

• Remarkable: Inner class can access variables from enclosing scope
  e.g. textField
• Can access enclosing instance fields, local variables

• Local variables must be marked final
  final JTextField textField = ...;


User Interface Actions

• Constructor attaches listener:


  helloButton.addActionListener(listener);


• Button remembers all listeners
• When button clicked, button notifies listeners


  listener.actionPerformed(event);


• Listener sets text of text field


  textField.setText("Hello, World!");


Timers

Drawing Shapes

• paintIcon method receives graphics context of type Graphics
• Actually a Graphics2D object in modern Java versions


  public void paintIcon(Component c, Graphics g, int x, int y)
  {
   Graphics2D g2 = (Graphics2D)g;
   . . .
  }


• Can draw any object that implements Shape interface


  Shape s = . . .;
  g2.draw(s);


Drawing Rectangles and Ellipses

• Rectangle2D.Double constructed with
  • top left corner
  • width
  • height

• g2.draw(new Rectangle2D.Double(x, y, width, height));

• For Ellipse2D.Double, specify bounding box

Drawing Ellipses

Drawing Line Segments

• Point2D.Double is a point in the plane
• Line2D.Double joins to points


  Point2D.Double start = new Point2D.Double(x1, y1);
  Point2D.Double end = new Point2D.Double(x2, y2);
  Shape segment = new Line2D.Double(start, end);
  g2.draw(segment);

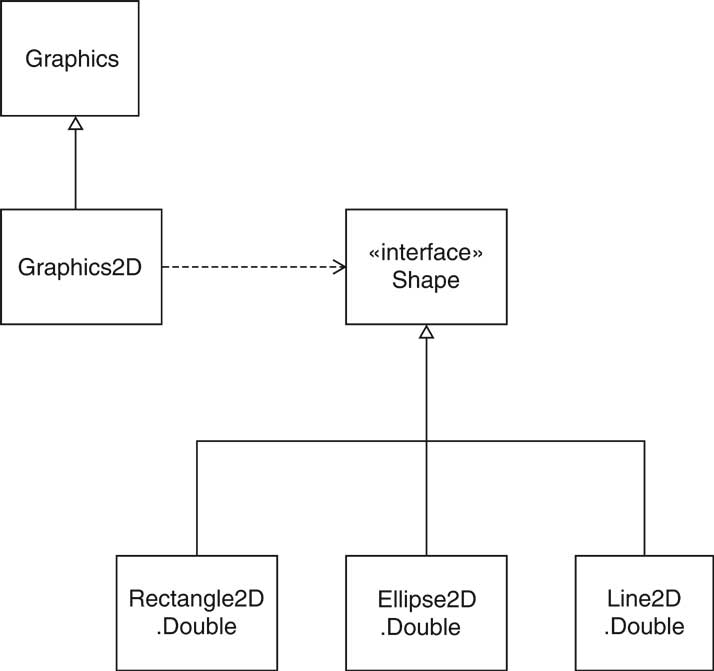

Relationship Between Shape Classes

Drawing Text

• g2.drawString(text, x, y);
• x, y are base point coordinates

Filling Shapes

Defining a New Interface Type

• Use timer to move car shapes
• Draw car with CarShape
• Two responsibilities:
  • Draw shape
  • Move shape
• Define new interface type MoveableShape

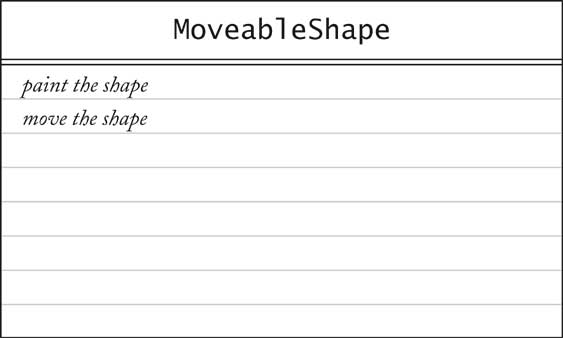

CRC Card for the MoveableShape Interface Type

Defining a New Interface Type

• Name the methods to conform to standard library
• public interface MoveableShape
  {
     void draw(Graphics2D g2);
     void translate(int dx, int dy);
  }
• CarShape class implements MoveableShape
  public class CarShape implements MoveableShape
  {
     public void translate(int dx, int dy)
     { x += dx; y += dy; }
     . . .
  }

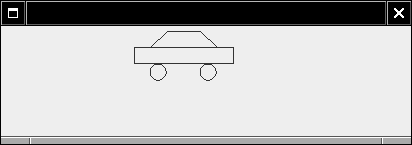

Implementing the Animation

• Label contains icon that draws shape

• Timer action moves shape, calls repaint on label
• Label needs Icon, we have MoveableShape
• Supply ShapeIcon adapter class
• ShapeIcon.paintIcon calls MoveableShape.draw

Implementing the Animation
