Optimizer hints can be used with SQL statements to alter execution plans. This chapter explains how to use hints to force various approaches.
The chapter contains the following sections:
Hints let you make decisions usually made by the optimizer. As an application designer, you might know information about your data that the optimizer does not know.
For example, you might know that a certain index is more selective for certain queries. Based on this information, you might be able to choose a more efficient execution plan than the optimizer. In such a case, use hints to force the optimizer to use the optimal execution plan.
You can use hints to specify the following:
Hints provide a mechanism to direct the optimizer to choose a certain query execution plan based on the following criteria:
Hints (except for the RULE hint) invoke the cost-based optimizer (CBO). If you have not gathered statistics, then defaults are used.
| See Also:
Chapter 3, "Gathering Optimizer Statistics" for more information on default values |
Hints apply only to the optimization of the statement block in which they appear. A statement block is any one of the following statements or parts of statements:
SELECT, UPDATE, or DELETE statement.For example, a compound query consisting of two component queries combined by the UNION
operator has two statement blocks, one for each component query. For
this reason, hints in the first component query apply only to its
optimization, not to the optimization of the second component query.
You can send hints for a SQL statement to the optimizer by enclosing them in a comment within the statement.
| See Also:
Oracle9i SQL Reference for more information on comments |
A statement block can have only one comment containing hints. This comment can only follow the SELECT, UPDATE, or DELETE keyword.
|
Exception: The |
The following syntax shows hints contained in both styles of comments that Oracle supports within a statement block.
{DELETE|INSERT|SELECT|UPDATE} /*+ hint [text] [hint[text]]... */
or
{DELETE|INSERT|SELECT|UPDATE} --+ hint [text] [hint[text]]...
where:
DELETE, INSERT, SELECT, and UPDATE are keywords that begin a statement block. Comments containing hints can appear only after these keywords.+ causes
Oracle to interpret the comment as a list of hints. The plus sign must
immediately follow the comment delimiter; no space is permitted.hint is
one of the hints discussed in this section. If the comment contains
multiple hints, then each hint must be separated from the others by at
least one space.text is other commenting text that can be interspersed with the hints.If you specify hints incorrectly, then Oracle ignores them but does not return an error:
DELETE, SELECT, or UPDATE keyword.The optimizer recognizes hints only when using the cost-based approach. If you include a hint (except the RULE hint) in a statement block, then the optimizer automatically uses the cost-based approach.
See Also:
|
When using hints, in some cases, you might need to
specify a full set of hints in order to ensure the optimal execution
plan. For example, if you have a very complex query, which consists of
many table joins, and if you specify only the INDEX hint
for a given table, then the optimizer needs to determine the remaining
access paths to be used, as well as the corresponding join methods.
Therefore, even though you gave the INDEX hint, the
optimizer might not necessarily use that hint, because the optimizer
might have determined that the requested index cannot be used due to
the join methods and access paths selected by the optimizer.
In Example 5-1, the ORDERED hint specifies the exact join order to be used; the join methods to be used on the different tables are also specified.
SELECT /*+ ORDERED INDEX (b, jl_br_balances_n1) USE_NL (j b) USE_NL (glcc glf) USE_MERGE (gp gsb) */ b.application_id , b.set_of_books_id , b.personnel_id, p.vendor_id Personnel, p.segment1 PersonnelNumber, p.vendor_name Name FROM jl_br_journals j, jl_br_balances b, gl_code_combinations glcc, fnd_flex_values_vl glf, gl_periods gp, gl_sets_of_books gsb, po_vendors p WHERE ...
Note that the hints could have been also been in this format:
SELECT --+ ORDERED INDEX (b, jl_br_balances_n1) USE_NL (j b) USE_NL (glcc glf) USE_MERGE (gp gsb)
By default, hints do not propagate inside a complex view. For example, if you specify a hint in a query that selects against a complex view, then that hint is not honored, because it is not pushed inside the view.
Unless the hints are inside the base view, they might not be honored from a query against the view.
Table hints (in other words, hints that specify a table) generally refer to tables in the DELETE, SELECT, or UPDATE
statement in which the hint occurs, not to tables inside any views
referenced by the statement. When you want to specify hints for tables
that appear inside views, Oracle recommends using global hints instead
of embedding the hint in the view. Any table hint described in this
chapter can be transformed into a global hint by using an extended
syntax for the table name.
See Also:
|
Optimizer hints can be categorized as follows:
The hints described in this section let you choose between the cost-based and the rule-based optimization approaches. With the cost-based approach, this also includes the goal of best throughput or best response time.
If a SQL statement has a hint specifying an optimization
approach and goal, then the optimizer uses the specified approach
regardless of the presence or absence of statistics, the value of the OPTIMIZER_MODE initialization parameter, and the OPTIMIZER_MODE parameter of the ALTER SESSION statement.
The ALL_ROWS hint explicitly chooses the
cost-based approach to optimize a statement block with a goal of best
throughput (that is, minimum total resource consumption).
all_rows_hint::=
For example, the optimizer uses the cost-based approach to optimize this statement for best throughput:
SELECT /*+ ALL_ROWS */ employee_id, last_name, salary, job_id FROM employees WHERE employee_id = 7566;
The hints FIRST_ROWS(n) (where n is any positive integer) or FIRST_ROWS instruct Oracle to optimize an individual SQL statement for fast response. FIRST_ROWS(n) affords greater precision, because it instructs Oracle to choose the plan that returns the first n rows most efficiently. The FIRST_ROWS
hint, which optimizes for the best plan to return the first single row,
is retained for backward compatibility and plan stability.
first_rows_hint::=
For example, the optimizer uses the cost-based approach to optimize this statement for best response time:
SELECT /*+ FIRST_ROWS(10) */ employee_id, last_name, salary, job_id FROM employees WHERE department_id = 20;
In this example each department contains many employees. The user wants the first 10 employees of department #20 to be displayed as quickly as possible.
The optimizer ignores this hint in DELETE and UPDATE statement blocks and in SELECT statement blocks that contain any of the following syntax:
UNION, INTERSECT, MINUS, UNION ALL)GROUP BY clauseFOR UPDATE clauseDISTINCT operatorORDER BY clauses, when there is no index on the ordering columnsThese statements cannot be optimized for best response time, because Oracle must retrieve all rows accessed by the statement before returning the first row. If you specify this hint in any of these statements, then the optimizer uses the cost-based approach and optimizes for best throughput.
If you specify either the ALL_ROWS or the FIRST_ROWS
hint in a SQL statement, and if the data dictionary does not have
statistics about tables accessed by the statement, then the optimizer
uses default statistical values (such as allocated storage for such
tables) to estimate the missing statistics and, subsequently, to choose
an execution plan.
These estimates might not be as accurate as those gathered by the DBMS_STATS package. Therefore, use the DBMS_STATS package to gather statistics. If you specify hints for access paths or join operations along with either the ALL_ROWS or FIRST_ROWS hint, then the optimizer gives precedence to the access paths and join operations specified by the hints.
| See Also:
"How the CBO Optimizes SQL Statements for Fast Response" for an explanation of the difference between |
The CHOOSE hint causes the optimizer to
choose between the rule-based and cost-based approaches for a SQL
statement. The optimizer bases its selection on the presence of
statistics for the tables accessed by the statement. If the data
dictionary has statistics for at least one of these tables, then the
optimizer uses the cost-based approach and optimizes with the goal of
best throughput. If the data dictionary does not have statistics for
these tables, then it uses the rule-based approach.
choose_hint::=
For example:
SELECT /*+ CHOOSE */ employee_id, last_name, salary, job_id FROM employees WHERE employee_id = 7566;
rule_hint::=
For example:
SELECT /*+ RULE */ employee_id, last_name, salary, job_id FROM employees WHERE employee_id = 7566;
|
Note: Oracle Corporation strongly advises the use of cost-based optimization. Rule-based optimization will be deprecated in a future release. |
Each hint described in this section suggests an access path for a table.
Specifying one of these hints causes the optimizer to choose the specified access path only if the access path is available based on the existence of an index or cluster and on the syntactic constructs of the SQL statement. If a hint specifies an unavailable access path, then the optimizer ignores it.
You must specify the table to be accessed exactly as it appears in the statement. If the statement uses an alias for the table, then use the alias rather than the table name in the hint. The table name within the hint should not include the schema name if the schema name is present in the statement.
|
Note: For access path hints, Oracle ignores the hint if you specify the |
| See Also:
Oracle9i SQL Reference for more information on the |
The FULL hint explicitly chooses a full table scan for the specified table.
full_hint::=
where table specifies the name or alias of
the table on which the full table scan is to be performed. If the
statement does not use aliases, then the table name is the default
alias.
For example:
SELECT /*+ FULL(e) */ employee_id, last_name FROM employees e WHERE last_name LIKE :b1;
Oracle performs a full table scan on the employees table to execute this statement, even if there is an index on the last_name column that is made available by the condition in the WHERE clause.
The ROWID hint explicitly chooses a table scan by rowid for the specified table.
rowid_hint::=
where table specifies the name or alias of the table on which the table access by rowid is to be performed.
For example:
SELECT /*+ROWID(employees)*/ * FROM employees WHERE rowid > 'AAAAtkAABAAAFNTAAA' AND employee_id = 155;
The CLUSTER hint explicitly chooses a cluster scan to access the specified table. It applies only to clustered objects.
cluster_hint::=
where table specifies the name or alias of the table to be accessed by a cluster scan.
For example:
SELECT /*+ CLUSTER */ employees.last_name, department_id FROM employees, departments WHERE department_id = 10 AND employees.department_id = departments.department_id;
The HASH hint explicitly chooses a hash scan to access the specified table. It applies only to tables stored in a cluster.
hash_hint::=
where table specifies the name or alias of the table to be accessed by a hash scan.
The INDEX hint explicitly chooses an index scan for the specified table. You can use the INDEX hint for domain, B-tree, bitmap, and bitmap join indexes. However, Oracle recommends using INDEX_COMBINE rather than INDEX for bitmap indexes, because it is a more versatile hint.
index_hint::=
where:
table specifies the name or alias of the table associated with the index to be scanned.index specifies an index on which an index scan is to be performed.This hint can optionally specify one or more indexes:
For example, consider this query that selects the name, height, and weight of all male patients in a hospital:
SELECT name, height, weight FROM patients WHERE sex = 'm';
Assume that there is an index on the SEX column and that this column contains the values m and f.
If there are equal numbers of male and female patients in the hospital,
then the query returns a relatively large percentage of the table's
rows, and a full table scan is likely to be faster than an index scan.
However, if a very small percentage of the hospital's patients are
male, then the query returns a relatively small percentage of the
table's rows, and an index scan is likely to be faster than a full
table scan.
Barring the use of frequency histograms, the number of occurrences of each distinct column value is not available to the optimizer. The cost-based approach assumes that each value has an equal probability of appearing in each row. For a column having only two distinct values, the optimizer assumes each value appears in 50% of the rows, so the cost-based approach is likely to choose a full table scan rather than an index scan.
If you know that the value in the WHERE clause of the query appears in a very small percentage of the rows, then you can use the INDEX hint to force the optimizer to choose an index scan. In this statement, the INDEX hint explicitly chooses an index scan on the sex_index, the index on the sex column:
SELECT /*+ INDEX(patients sex_index) use sex_index because there are few male patients */ name, height, weight FROM patients WHERE sex = 'm';
The INDEX hint applies to IN-list predicates; it forces the optimizer to use the hinted index, if possible, for an IN-list predicate. Multicolumn IN-lists will not use an index.
The INDEX_ASC hint explicitly chooses an
index scan for the specified table. If the statement uses an index
range scan, then Oracle scans the index entries in ascending order of
their indexed values.
index_asc_hint::=
Each parameter serves the same purpose as in the INDEX hint.
Because Oracle's default behavior for a range scan is to
scan index entries in ascending order of their indexed values, this
hint does not specify anything more than the INDEX hint. However, you might want to use the INDEX_ASC hint to specify ascending range scans explicitly should the default behavior change.
The INDEX_COMBINE hint explicitly chooses a bitmap access path for the table. If no indexes are given as arguments for the INDEX_COMBINE
hint, then the optimizer uses whatever Boolean combination of bitmap
indexes has the best cost estimate for the table. If certain indexes
are given as arguments, then the optimizer tries to use some Boolean
combination of those particular bitmap indexes.
index_combine_hint::=
For example:
SELECT /*+INDEX_COMBINE(employees salary_bmi hire_date_bmi)*/ * FROM employees WHERE salary < 50000 AND hire_date < '01-JAN-1990';
The INDEX_JOIN hint explicitly instructs the
optimizer to use an index join as an access path. For the hint to have
a positive effect, a sufficiently small number of indexes must exist
that contain all the columns required to resolve the query.
index_join_hint::=
where:
table specifies the name or alias of the table associated with the index to be scanned.index specifies an index on which an index scan is to be performed.For example, the following query uses an index join to access the employee_id and department_id columns, both of which are indexed in the employees table.
SELECT /*+index_join(employees emp_emp_id_pk emp_department_ix)*/ employee_id, department_id FROM employees WHERE department_id > 50;
The INDEX_DESC hint explicitly chooses an
index scan for the specified table. If the statement uses an index
range scan, then Oracle scans the index entries in descending order of
their indexed values. In a partitioned index, the results are in
descending order within each partition.
index_desc_hint::=
Each parameter serves the same purpose as in the INDEX hint. For example:
SELECT /*+ INDEX_DESC(a ord_order_date_ix) */ a.order_date, a.promotion_id, a.order_id FROM orders a WHERE a.order_date = :b1;
The INDEX_FFS hint causes a fast full index scan to be performed rather than a full table scan.
index_ffs_hint::=
For example:
SELECT /*+ INDEX_FFS ( o order_pk ) */ COUNT(*) FROM order_items l, orders o WHERE l.order_id > 50 AND l.order_id = o.order_id;
The NO_INDEX hint explicitly disallows a set of indexes for the specified table.
no_index_hint::=
NO_INDEX hint that specifies a list of all available indexes for the table.The NO_INDEX hint applies to function-based, B-tree, bitmap, cluster, or domain indexes. If a NO_INDEX hint and an index hint (INDEX, INDEX_ASC, INDEX_DESC, INDEX_COMBINE, or INDEX_FFS) both specify the same indexes, then both the NO_INDEX hint and the index hint are ignored for the specified indexes and the optimizer considers the specified indexes.
For example:
SELECT /*+NO_INDEX(employees emp_empid)*/ employee_id FROM employees WHERE employee_id > 200;
The AND_EQUAL hint explicitly chooses an execution plan that uses an access path that merges the scans on several single-column indexes.
and_equal_hint::=
where:
table specifies the name or alias of the table associated with the indexes to be merged.index
specifies an index on which an index scan is to be performed. You must
specify at least two indexes. You cannot specify more than five.Each hint described in this section suggests a SQL query transformation.
The USE_CONCAT hint forces combined OR conditions in the WHERE clause of a query to be transformed into a compound query using the UNION ALL
set operator. Generally, this transformation occurs only if the cost of
the query using the concatenations is cheaper than the cost without
them.
The USE_CONCAT hint turns off IN-list processing and OR-expands all disjunctions, including IN-lists.
use_concat_hint::=
For example:
SELECT /*+USE_CONCAT*/ * FROM employees WHERE employee_id > 50 OR salary < 50000;
The NO_EXPAND hint prevents the cost-based optimizer from considering OR-expansion for queries having OR conditions or IN-lists in the WHERE clause. Usually, the optimizer considers using OR expansion and uses this method if it decides that the cost is lower than not using it.
no_expand_hint::=
For example:
SELECT /*+NO_EXPAND*/ * FROM employees WHERE employee_id = 50 OR employee_id = 100;
The REWRITE hint forces the cost-based
optimizer to rewrite a query in terms of materialized views, when
possible, without cost consideration. Use the REWRITE hint with or without a view list. If you use REWRITE with a view list and the list contains an eligible materialized view, then Oracle uses that view regardless of its cost.
Oracle does not consider views outside of the list. If you do not specify a view list, then Oracle searches for an eligible materialized view and always uses it regardless of its cost.
rewrite_hint::=
See Also:
|
The EXPAND_GSET_TO_UNION hint is used for queries containing grouping sets (such as queries with GROUP BY GROUPING SET or GROUP BY ROLLUP). The hint forces a query to be transformed into a corresponding query with UNION ALL of individual groupings.
expand_gset_to_union_hint::=
For example:
SELECT year, quarter, month, sum(sales) FROM T GROUP BY year, rollup(quarter, month)
is first transformed to
SELECT year, quarter, month, sum(sales) FROM T GROUP BY year, quarter, month UNION ALL SELECT year, quarter, null, sum(sales) FROM T GROUP BY year, quarter UNION ALL SELECT year, null, null, sum(sales) FROM T GROUP BY year
Then, for each branch of the UNION ALL,
Oracle tries a rewrite with a materialized view. The rewrite may do a
joinback and rollup of the materialized view. Finally, Oracle looks at
the branches not rewritten and tries to represent them as a single
query block with grouping sets. So for example, if only the last branch
of the UNION ALL was rewritten with materialized view MV, Oracle replaces the first two branches with a the equivalent GROUPING SET query, as follows:
SELECT year, quarter, month, sum(sales) FROM T GROUP BY grouping set ( (year, quarter, month), (year, quarter) ) UNION ALL SELECT year, null, null, sum_sales FROM MV
The NOREWRITE hint disables query rewrite for the query block, overriding the setting of the parameter QUERY_REWRITE_ENABLED. Use the NOREWRITE hint on any query block of a request.
norewrite_hint::=
The MERGE hint lets you merge a view for each query.
If a view's query contains a GROUP BY clause or DISTINCT operator in the SELECT
list, then the optimizer can merge the view's query into the accessing
statement only if complex view merging is enabled. Complex merging can
also be used to merge an IN subquery into the accessing statement if the subquery is uncorrelated.
Complex merging is not cost-based; that is, the accessing query block must include the MERGE hint. Without this hint, the optimizer uses another approach.
merge_hint::=
For example:
SELECT /*+MERGE(v)*/ e1.last_name, e1.salary, v.avg_salary FROM employees e1, (SELECT department_id, avg(salary) avg_salary FROM employees e2 GROUP BY department_id) v WHERE e1.department_id = v.department_id AND e1.salary > v.avg_salary;
The NO_MERGE hint causes Oracle not to merge mergeable views.
no_merge_hint::=
This hint lets the user have more influence over the way in which the view is accessed.
For example:
SELECT /*+NO_MERGE(dallas_dept)*/ e1.last_name, dallas_dept.dname FROM employees e1, (SELECT department_id, dname FROM departments WHERE loc = 'DALLAS') dallas_dept WHERE e1.department_id = dallas_dept.department_id;
This causes view dallas_dept not to be merged.
When the NO_MERGE hint is used without an argument, it should be placed in the view query block. When NO_MERGE is used with the view name as an argument, it should be placed in the surrounding query.
The STAR_TRANSFORMATION hint makes the
optimizer use the best plan in which the transformation has been used.
Without the hint, the optimizer could make a cost-based decision to use
the best plan generated without the transformation, instead of the best
plan for the transformed query.
Even if the hint is given, there is no guarantee that the transformation will take place. The optimizer only generates the subqueries if it seems reasonable to do so. If no subqueries are generated, then there is no transformed query, and the best plan for the untransformed query is used, regardless of the hint.
star_transformation_hint::=
See Also:
|
The FACT hint is used in the context of the
star transformation to indicate to the transformation that the hinted
table should be considered as a fact table.
fact_hint::=
The NO_FACT hint is used in the context of
the star transformation to indicate to the transformation that the
hinted table should not be considered as a fact table.
no_fact_hint::=
The hints in this section suggest join orders:
The ORDERED hint causes Oracle to join tables in the order in which they appear in the FROM clause.
If you omit the ORDERED hint from a SQL
statement performing a join, then the optimizer chooses the order in
which to join the tables. You might want to use the ORDERED
hint to specify a join order if you know something about the number of
rows selected from each table that the optimizer does not. Such
information lets you choose an inner and outer table better than the
optimizer could.
ordered_hint::=
The following query is an example of the use of the ORDERED hint:
SELECT /*+ORDERED */ o.order_id, c.customer_id, l.unit_price * l.quantity FROM customers c, order_items l, orders o WHERE c.cust_last_name = :b1 AND o.customer_id = c.customer_id AND o.order_id = l.order_id;
The STAR hint forces a star query plan to be
used, if possible. A star plan has the largest table in the query last
in the join order and joins it with a nested loops join on a
concatenated index. The STAR hint applies when there are
at least three tables, the large table's concatenated index has at
least three columns, and there are no conflicting access or join method
hints. The optimizer also considers different permutations of the small
tables.
star_hint::=
Usually, if you analyze the tables, then the optimizer
selects an efficient star plan. You can also use hints to improve the
plan. The most precise method is to order the tables in the FROM clause in the order of the keys in the index, with the large table last. Then use the following hints:
/*+ ORDERED USE_NL(FACTS) INDEX(facts fact_concat) */
where facts is the table and fact_concat is the index. A more general method is to use the STAR hint.
Each hint described in this section suggests a join operation for a table.
In the hint you must specify a table exactly the same way it appears in the statement. If the statement uses an alias for the table, then you must use the alias rather than the table name in the hint. However, the table name within the hint should not include the schema name, if the schema name is present in the statement.
Use of the USE_NL and USE_MERGE hints is recommended with the ORDERED
hint. Oracle uses these hints when the referenced table is forced to be
the inner table of a join; the hints are ignored if the referenced
table is the outer table.
The USE_NL hint causes Oracle to join each
specified table to another row source with a nested loops join, using
the specified table as the inner table.
use_nl_hint::=
where table is the name or alias of a table to be used as the inner table of a nested loops join.
For example, consider this statement, which joins the accounts and customers tables. Assume that these tables are not stored together in a cluster:
SELECT accounts.balance, customers.last_name, customers.first_name FROM accounts, customers WHERE accounts.customer_id = customers.customer_id;
Because the default goal of the cost-based approach is best throughput, the optimizer chooses either a nested loops operation, a sort-merge operation, or a hash operation to join these tables, depending on which is likely to return all the rows selected by the query more quickly.
However, you might want to optimize the statement for
best response time or the minimal elapsed time necessary to return the
first row selected by the query, rather than best throughput. If so,
then you can force the optimizer to choose a nested loops join by using
the USE_NL hint. In this statement, the USE_NL hint explicitly chooses a nested loops join with the customers table as the inner table:
SELECT /*+ ORDERED USE_NL(customers) to get first row faster */ accounts.balance, customers.last_name, customers.first_name FROM accounts, customers WHERE accounts.customer_id = customers.customer_id;
In many cases, a nested loops join returns the first row faster than a sort merge join. A nested loops join can return the first row after reading the first selected row from one table and the first matching row from the other and combining them, while a sort merge join cannot return the first row until after reading and sorting all selected rows of both tables and then combining the first rows of each sorted row source.
In the following statement where a nested loop is forced through a hint, orders is accessed through a full table scan and the filter condition l.order_id = h.order_id is applied to every row. For every row that meets the filter condition, order_items is accessed through the index order_id.
SELECT /*+ USE_NL(l h) */ h.customer_id, l.unit_price * l.quantity FROM orders h ,order_items l WHERE l.order_id = h.order_id;
Adding an INDEX hint to the query could avoid the full table scan on orders, resulting in an execution plan similar to one used on larger systems, even though it might not be particularly efficient here.
The USE_MERGE hint causes Oracle to join each specified table with another row source, using a sort-merge join.
use_merge_hint::=
where table is a table to be joined to the row source resulting from joining the previous tables in the join order using a sort merge join.
For example:
SELECT /*+USE_MERGE(employees departments)*/ * FROM employees, departments WHERE employees.department_id = departments.department_id;
The following query shows an inventory usage report in which the optimizer avoids a sort for the GROUP BY operation by using the sort merge operation specified by the USE_MERGE hint.
SELECT /*+ USE_MERGE(inv l) */inv.product_id, SUM(l.quantity) FROM inventories inv, order_items l WHERE inv.product_id = l.product_id(+) GROUP BY inv.product_id;
The following is a query applying the USE_MERGE hint with the FULL hint.
SELECT /*+USE_MERGE(h l) FULL(h l) */ h.customer_id, l.unit_price * l.quantity FROM orders h ,order_items l WHERE l.order_id = h.order_id;
The USE_HASH hint causes Oracle to join each specified table with another row source, using a hash join.
use_hash_hint::=
where table is a table to be joined to the row source resulting from joining the previous tables in the join order using a hash join.
For example:
SELECT /*+USE_HASH(l l2) */ l.order_date, l.order_id, l2.product_id, SUM(l2.unit_price*quantity) FROM orders l, order_items l2 WHERE l.order_id = l2.order_id GROUP BY l2.product_id, l.order_date, l.order_id;
Another example:
SELECT /*+use_hash(employees departments)*/ * FROM employees, departments WHERE employees.department_id = departments.department_id;
The DRIVING_SITE hint forces query execution
to be done at a different site than that selected by Oracle. This hint
can be used with either rule-based or cost-based optimization.
driving_site_hint::=
where table is the name or alias for the table at which site the execution should take place.
For example:
SELECT /*+DRIVING_SITE(departments)*/ * FROM employees, departments@rsite WHERE employees.department_id = departments.department_id;
If this query is executed without the hint, then rows from departments are sent to the local site, and the join is executed there. With the hint, the rows from employees are sent to the remote site, and the query is executed there, returning the result to the local site.
This hint is useful if you are using distributed query optimization.
The LEADING hint causes Oracle to use the specified table as the first table in the join order.
If you specify two or more LEADING hints on different tables, then all of them are ignored. If you specify the ORDERED hint, then it overrides all LEADING hints.
leading_hint::=
where table is the name or alias of a table to be used as the first table in the join order.
For a specific query, place the MERGE_AJ, HASH_AJ, or NL_AJ hint into the NOT IN subquery. MERGE_AJ uses a sort-merge anti-join, HASH_AJ uses a hash anti-join, and NL_AJ uses a nested loop anti-join.

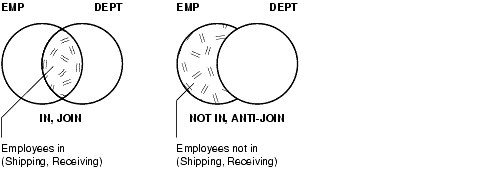

As illustrated in Figure 5-1, the SQL IN predicate can be evaluated using a join to intersect two sets. Thus, employees.department_id can be joined to departments.department_id to yield a list of employees in a set of departments.
Alternatively, the SQL predicate NOT IN can be evaluated using an anti-join to subtract two sets. Thus, employees.department_id can be anti-joined to departments.department_id
to select all employees who are not in a set of departments, and you
can get a list of all employees who are not in the shipping or
receiving departments.
For a specific query, place the HASH_SJ, MERGE_SJ, or NL_SJ hint into the EXISTS subquery. HASH_SJ uses a hash semi-join, MERGE_SJ uses a sort merge semi-join, and NL_SJ uses a nested loop semi-join.
For example:
SELECT * FROM departments WHERE exists (SELECT /*+HASH_SJ*/ * FROM employees WHERE employees.department_id = departments.department_id AND salary > 200000);
This converts the subquery into a special type of join between t1 and t2 that preserves the semantics of the subquery. That is, even if there is more than one matching row in t2 for a row in t1, the row in t1 is returned only once.
A subquery is evaluated as a semi-join only with these limitations:
GROUP BY, CONNECT BY, or ROWNUM references.
| See Also:
Oracle9i SQL Reference for more information about joins |
The hints described in this section determine how statements are parallelized or not parallelized when using parallel execution.
| See Also:
Oracle9i Data Warehousing Guide for more information on parallel execution |
The PARALLEL hint lets you specify the
desired number of concurrent servers that can be used for a parallel
operation. The hint applies to the SELECT, INSERT, UPDATE, and DELETE portions of a statement, as well as to the table scan portion.
|
Note: The number of servers that can be used is twice the value in the |
If any parallel restrictions are violated, then the hint is ignored.

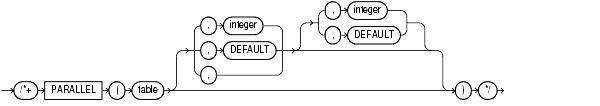

parallel_hint::=
The PARALLEL hint must use the table alias,
if an alias is specified in the query. The hint can then take two
values, separated by commas after the table name. The first value
specifies the degree of parallelism for the given table, and the second
value specifies how the table is to be split among the Oracle Real
Application Clusters instances. Specifying DEFAULT or no
value signifies that the query coordinator should examine the settings
of the initialization parameters to determine the default degree of
parallelism. In the following example, the PARALLEL hint overrides the degree of parallelism specified in the employees table definition:
SELECT /*+ FULL(hr_emp) PARALLEL(hr_emp, 5) */ last_name FROM hr.employees hr_emp;
In the next example, the PARALLEL hint overrides the degree of parallelism specified in the employees
table definition and tells the optimizer to use the default degree of
parallelism determined by the initialization parameters. This hint also
specifies that the table should be split among all of the available
instances, with the of parallelism on each instance.
SELECT /*+ FULL(hr_emp) PARALLEL(hr_emp, DEFAULT,DEFAULT) */ last_name FROM hr.employees hr_emp;
The NOPARALLEL hint overrides a PARALLEL specification in the table clause. In general, hints take precedence over table clauses.
noparallel_hint::=
The following example illustrates the NOPARALLEL hint:
SELECT /*+ NOPARALLEL(hr_emp) */ last_name FROM hr.employees hr_emp;
The PQ_DISTRIBUTE hint improves the
performance of parallel join operations. Do this by specifying how rows
of joined tables should be distributed among producer and consumer
query servers. Using this hint overrides decisions the optimizer would
normally make.
Use the EXPLAIN PLAN statement
to identify the distribution chosen by the optimizer. The optimizer
ignores the distribution hint, if both tables are serial.
pq_distribute_hint::=
where:
table_name is the name or alias of a table to be used as the inner table of a join.outer_distribution is the distribution for the outer table.inner_distribution is the distribution for the inner table.
| See Also:
Oracle9i Database Concepts for more information on how Oracle parallelizes join operations |
There are six combinations for table distribution. Only a subset of distribution method combinations for the joined tables is valid, as explained in Table 5-1.
For example: Given two tables, r and s, that are joined using a hash-join, the following query contains a hint to use hash distribution:
SELECT column_list /*+ORDERED PQ_DISTRIBUTE(s HASH, HASH) USE_HASH (s)*/
FROM r,s
WHERE r.c=s.c;
To broadcast the outer table r, the query is:
SELECT column list /*+ORDERED PQ_DISTRIBUTE(s BROADCAST, NONE) USE_HASH (s) */
FROM r,s
WHERE r.c=s.c;
The PARALLEL_INDEX hint specifies the
desired number of concurrent servers that can be used to parallelize
index range scans for partitioned indexes.
parallel_index_hint::=
where:
table is the name or alias of the table associated with the index to be scanned.index is the index on which an index scan is to be performed (optional).The hint can take two values, separated by commas after
the table name. The first value specifies the degree of parallelism for
the given table. The second value specifies how the table is to be
split among the Oracle Real Application Clusters instances. Specifying DEFAULT
or no value signifies the query coordinator should examine the settings
of the initialization parameters to determine the default degree of
parallelism.
For example:
SELECT /*+ PARALLEL_INDEX(table1, index1, 3, 2) +/
In this example, there are three parallel execution processes to be used on each of two instances.
The NOPARALLEL_INDEX hint overrides a PARALLEL attribute setting on an index to avoid a parallel index scan operation.
noparallel_index_hint::=
Several additional hints are included in this section:
The APPEND hint lets you enable direct-path INSERT
if your database is running in serial mode. Your database is in serial
mode if you are not using Enterprise Edition. Conventional INSERT is the default in serial mode, and direct-path INSERT is the default in parallel mode.
In direct-path INSERT, data is appended to
the end of the table, rather than using existing space currently
allocated to the table. As a result, direct-path INSERT can be considerably faster than conventional INSERT.
append_hint::=
The NOAPPEND hint enables conventional INSERT by disabling parallel mode for the duration of the INSERT statement. (Conventional INSERT is the default in serial mode, and direct-path INSERT is the default in parallel mode).
noappend_hint::=
The CACHE hint specifies that the blocks
retrieved for the table are placed at the most recently used end of the
LRU list in the buffer cache when a full table scan is performed. This
option is useful for small lookup tables.
cache_hint::=
In the following example, the CACHE hint overrides the table's default caching specification:
SELECT /*+ FULL (hr_emp) CACHE(hr_emp) */ last_name FROM hr.employees hr_emp;
The NOCACHE hint specifies that the blocks
retrieved for the table are placed at the least recently used end of
the LRU list in the buffer cache when a full table scan is performed.
This is the normal behavior of blocks in the buffer cache.
nocache_hint::=
For example:
SELECT /*+ FULL(hr_emp) NOCACHE(hr_emp) */ last_name FROM hr.employees hr_emp;
|
Note: The |
Starting with Oracle9i, Release 2 (9.2), small tables are automatically cached, according to the criteria in Table 5-2.
Automatic caching of small tables is disabled for tables that are created or altered with the CACHE attribute.
The UNNEST hint specifies subquery
unnesting. Subquery unnesting unnests and merges the body of the
subquery into the body of the statement that contains it, allowing the
optimizer to consider them together when evaluating access paths and
joins.
If the UNNEST hint is used, Oracle first
verifies if the statement is valid. If the statement is not valid, then
subquery unnesting cannot proceed. The statement must then must pass a
heuristic test.
The UNNEST hint tells Oracle to check the
subquery block for validity only. If the subquery block is valid, then
subquery unnesting is enabled without Oracle's checking the heuristics.
See Also:
|
unnest_hint::=
Use of the NO_UNNEST hint turns off unnesting for specific subquery blocks.
no_unnest_hint::=
The PUSH_PRED hint forces pushing of a join predicate into the view.
push_pred_hint::=
For example:
SELECT /*+ PUSH_PRED(v) */ t1.x, v.y FROM t1 (SELECT t2.x, t3.y FROM t2, t3 WHERE t2.x = t3.x) v WHERE t1.x = v.x and t1.y = 1;
The NO_PUSH_PRED hint prevents pushing of a join predicate into the view.
no_push_pred_hint::=
The PUSH_SUBQ hint causes non-merged
subqueries to be evaluated at the earliest possible step in the
execution plan. Generally, subqueries that are not merged are executed
as the last step in the execution plan. If the subquery is relatively
inexpensive and reduces the number of rows significantly, then it
improves performance to evaluate the subquery earlier.
This hint has no effect if the subquery is applied to a remote table or one that is joined using a merge join.
push_subq_hint::=
The NO_PUSH_SUBQ hint causes non-merged
subqueries to be evaluated as the last step in the execution plan. If
the subquery is relatively expensive or does not reduce the number of
rows significantly, then it improves performance to evaluate the
subquery last.
no_push_subq_hint::=
The ORDERED_PREDICATES hint forces the
optimizer to preserve the order of predicate evaluation, except for
predicates used as index keys. Use this hint in the WHERE clause of SELECT statements.
If you do not use the ORDERED_PREDICATES hint, then Oracle evaluates all predicates in the following order:
WHERE clause.WHERE clause.WHERE clause (for example, predicates transitively generated by the optimizer) are evaluated next.WHERE clause.
ordered_predicates_hint::=
Oracle can replace literals in SQL statements with bind variables, if it is safe to do so. This is controlled with the CURSOR_SHARING startup parameter. The CURSOR_SHARING_EXACT
hint causes this behavior to be switched off. In other words, Oracle
executes the SQL statement without any attempt to replace literals by
bind variables.
cursor_sharing_exact_hint::=
The DYNAMIC_SAMPLING hint lets you control
dynamic sampling to improve server performance by determining more
accurate selectivity and cardinality estimates. You can set the value
of DYNAMIC_SAMPLING to a value from 0 to 10. The higher
the level, the more effort the compiler puts into dynamic sampling and
the more broadly it is applied. Sampling defaults to cursor level
unless you specify a table.
dynamic_sampling_hint::=
where:
table specifies the name or alias of the table on which the dynamic sampling is to be performed.integer is a value from 0 to 10 indicating the degree of sampling. If the statement does not use aliases, then the table name is the default alias.For example:
SELECT /*+ dynamic_sampling(1) */ * FROM ...
enables dynamic sampling if all of the following conditions are true:
The sampling levels are as follows if the dynamic sampling level used is from a cursor hint or from the optimizer_dynamic_sampling parameter:
The sampling levels are as follows if the dynamic sampling level used is from a table hint:
To apply dynamic sampling to a specific table, use the following form of the hint:
SELECT /*+ dynamic_sampling(employees 1) */ * FROM employees WHERE ..,
If there is a table hint, dynamic sampling is used unless
the table is analyzed and there are no predicates on the table. For
example, the following query will not result in any dynamic sampling if
employees is analyzed:
SELECT /*+ dynamic_sampling(e 1) */ count(*) FROM employees e;
The cardinality statistic is used, if it exists. If there is a predicate, dynamic sampling is done with a table hint and cardinality is not estimated.
To force cardinality estimation even for an analyzed table, you can use a further hint, dynamic_sampling_est_cdn, as in the following example:
SELECT /*+ dynamic_sampling(e 1) dynamic_sampling_est_cdn(t) */ count(*) FROM employees e;
This forces cardinality estimation for employees, even if the table is analyzed. The following query does both selectivity and cardinality estimation for employees:
SELECT /*+ dynamic_sampling(e 1) dynamic_sampling_est_cdn(e) */ count(*) FROM employees e WHERE cols > 3;
Oracle does not encourage the use of hints inside or on views (or subqueries). This is because you can define views in one context and use them in another. However, such hints can result in unexpected execution plans. In particular, hints inside views or on views are handled differently, depending on whether the view is mergeable into the top-level query.
If you decide, nonetheless, to use hints with views, the following sections describe the behavior in each case.
If you want to specify a hint for a table in a view or subquery, then the global hint syntax is recommended. The following section describes this in detail.
This section describes hint behavior with mergeable views.
Optimization approach and goal hints can occur in a top-level query or inside views.
Access path and join hints on referenced views are ignored, unless the view contains a single table (or references an Additional Hints view with a single table). For such single-table views, an access path hint or a join hint on the view applies to the table inside the view.
Access path and join hints can appear in a view definition.
FROM clause of a SELECT statement), then all access path and join hints inside the view are preserved when the view is merged with the top-level query.FROM clause of the SELECT statement contains only the view).PARALLEL, NOPARALLEL, PARALLEL_INDEX, and NOPARALLEL_INDEX
hints on views are applied recursively to all the tables in the
referenced view. Parallel execution hints in a top-level query override
such hints inside a referenced view.
PARALLEL, NOPARALLEL, PARALLEL_INDEX, and NOPARALLEL_INDEX
hints inside views are preserved when the view is merged with the
top-level query. Parallel execution hints on the view in a top-level
query override such hints inside a referenced view.
With nonmergeable views, optimization approach and goal hints inside the view are ignored; the top-level query decides the optimization mode.
Because nonmergeable views are optimized separately from the top-level query, access path and join hints inside the view are preserved. For the same reason, access path hints on the view in the top-level query are ignored.
However, join hints on the view in the top-level query are preserved because, in this case, a nonmergeable view is similar to a table.
Table hints (hints that specify a table) normally refer to tables in the DELETE, SELECT, or UPDATE
statement in which the hint occurs, not to tables inside any views
referenced by the statement. When you want to specify hints for tables
that appear inside views, use global hints instead of embedding the
hint in the view. You can transform any table hint in this chapter into
a global hint by using an extended syntax for the table name, described
as follows.
Consider the following view definitions and SELECT statement:
CREATE OR REPLACE VIEW v1 AS SELECT * FROM employees WHERE employee_id < 150; CREATE OR REPLACE VIEW v2 AS SELECT v1.employee_id employee_id, departments.department_id department_id FROM v1, departments WHERE v1.department_id = departments.department_id; SELECT /*+ INDEX( v2.v1.employees emp_emp_id_pk ) FULL(v2.departments) */ * FROM v2 WHERE department_id = 30;
The view V1 retrieves all employees whose employee number is less than 150. The view V2 performs a join between the view V1 and the department table. The SELECT statement retrieves rows from the view V2 restricting it to the department whose number is 30.
There are two global hints in the SELECT statement. The first hint specifies an index scan for the employee table referenced in the view V1, which is referenced in the view V2. The second hint specifies a full table scan for the department table referenced in the view V2. Note the dotted syntax for the view tables.
A hint such as:
INDEX(employees emp_emp_id_pk)
in the SELECT statement is ignored because the employee table does not appear in the FROM clause of the SELECT statement.
The global hint syntax also applies to unmergeable views. Consider the following SELECT statement:
SELECT /*+ NO_MERGE(v2) INDEX(v2.v1.employees emp_emp_id_pk) FULL(v2.departments) */ * FROM v2 WHERE department_id = 30;
It causes V2 not to be merged and specifies
access path hints for the employee and department tables. These hints
are pushed down into the (nonmerged) view V2.
If a global hint references a UNION or UNION ALL view, then the hint is applied to the first branch that contains the hinted table. Consider the INDEX hint in the following SELECT statement:
SELECT /*+ INDEX(v.employees emp_emp_id_pk) */ * FROM (SELECT * FROM employees WHERE employee_id < 150 UNION ALL SELECT * FROM employees WHERE employee_id > 175) v WHERE department_id = 30;
The INDEX hint applies to the employee table in the first branch of the UNION ALL view v, not to the employee table in the second branch.
|
 Copyright © 2000, 2002 Oracle Corporation. All Rights Reserved. |
|
