Contents:

• Collaboration Policy
• Overview
• Advice
• Requirements
• Submitting Your Assignment
• Grading Standards

Collaboration Policy

For this assignment, you are allowed to work with one other student if you wish (in fact, we suggest that you do so). If any student wishes to have a partner but has not been able to locate one, please let the instructor know so that we can match up partners.

Please make sure you adhere to the policies on academic integrity in this regard.

Overview

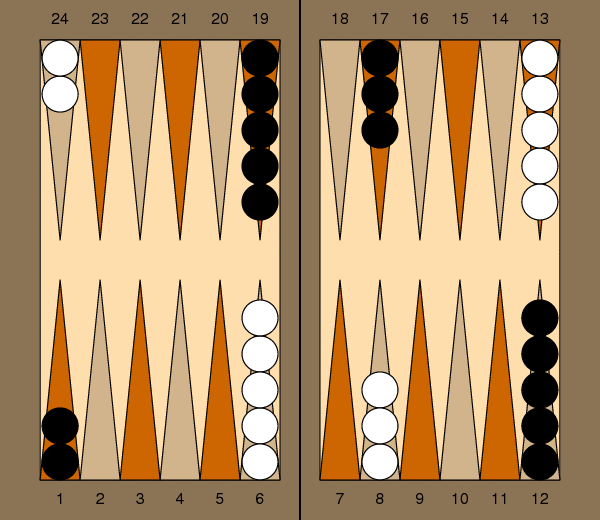

The goal of this assignment is to create an image of a backgammon board, patterned carefully after the following model (click on image to zoom):

Backgammon is a two-player game played on a board with 24 triangles known as points. Each player starts with 15 checkers, with an initial configuration as shown above. The points alternate in color as you go around the board, and there is a clear top-to-bottom symmetry to the placement of the checkers.

We have chosen this assignment as a way to exercise your use of control structures. Although the board is fixed and finite, and you could presumably create the image above by manually configuring the geometry for 24 different triangles, 30 circles, 24 text labels, and so on, you will only receive significant credit if you use control structures to express these patterns. As a general rule, if you ever find yourself "copying-and-pasting" code from one part of a program to another, there should be a more elegant way to express the repetition and variation.

Advice

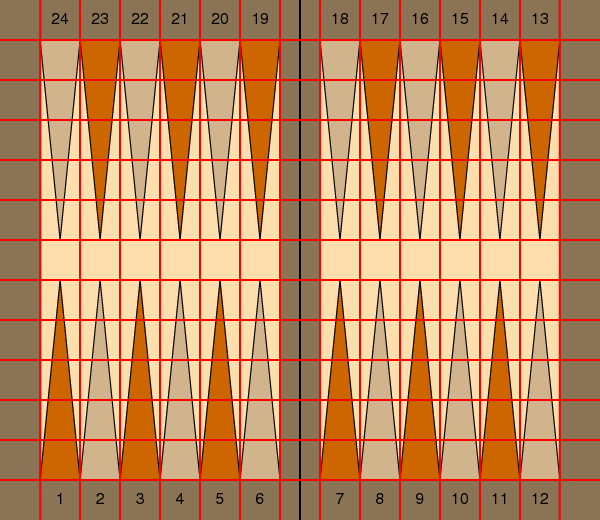

You should maintain a size variable that determines the width of each of those grid cells, so that you can do all other geometry computations based on the concept of such a width. This will allow you to draw the board at whatever scale you want, while keeping the rest of your geometric computations relatively clean.

You will notice that the points themselves are labeled from 1 to 24 in a clockwise fashion starting at the bottom-left. Each triangle has a width of precisely one cell and a height of 5 cells. There is a vertical separation of one cell width between the top and bottom points, as well as the horizontal separation between the left-half and right-half of the board.

The only place that we deviate from the unit grid size measure is for the checkers. Although they appear to have a diameter of one cell width, they are actually slightly smaller. In particular, we have given each a diameter of 0.9 relative to the cell width, and we have stacked them against each other based on their actual size; this makes a better appearance as more of the underlying point shows. But this means that the checker centers are not aligned precisely with the center of the grid cells.

The other issue with the checkers is that we would like you to use control structures rather than to draw 30 different checkers, but the "pattern" of the initial checkers is not regular. What is needed to code this cleanly is to understand what aspects of the checkers change. There are three such aspects:

• How many checkers lie on the given point
• Which point the checkers are on
• Whether white's checkers are on the top-half or bottom-half of the board.

• two checkers on the first (and 24th) point, with white on top
• five checkers on the sixth (and 19th) point, with white on bottom
• three checkers on the eighth (and 17th) point, with white on bottom
• five checkers on the twelfth (and 13th) point, with white on top

for num,pt,whiteOnTop in [(2,1,True), (5,6,False), (3,8,False), (5,12,True)]:

for x in sequence:

for x,y in [ (1,2),  (7,5),  (4,8),  (3,13), (2,15)]:

Going back to our backgammon applications, we have four different repetitions we need, where each one is defined by a triple designating the number of checkers, the point for those checkers, and whether white checkers are at the top of the board (rather than the bottom).

Color Choices

Requirements

Your program must start out by asking the user for the value of the number of pixels per grid-cell. Then, pick the appropriate canvas size and lay out the board with such a scale.

Submitting Your Assignment

You should create a new file, backgammon.py, which contains all of your own code. This file must be submitted electronically.

You should also submit a separate 'readme' text file, as outlined in the general webpage on programming assignments.

Please see details regarding the submission process from the general programming web page, as well as a discussion of the late policy.

Grading Standards

The assignment is worth 40 points, apporitioned as follows:

• 4 points: Quality of the required 'readme' file
• 4 points: correct rendering of board background and center bar
• 4 points: correct and appropriate placement of text labels
• 4 points: correct placement and coloring for the triangles
• 4 points: correct placement and coloring for the checkers
• 5 points: validity of entire rendering when scaled to various sizes
• 5 points: General readibility of the source code, including well chosen variable names and appropriate inline comments
• 10 points: Appropriate use of control structures in avoiding redundancy of code
